High Platform To Pinch Ball Valve
Product Profile：
The flange of clamping ball valve is connected by thread on high platform. This product has the characteristics of short structure length, light weight and easy installation. It is suitable for small space and difficult installation in high altitude operation.
Valves are designed and manufactured in accordance with GB/T 12237, BS5351, API 608, API 6D, ISO 7121, JSI, DIN and other standards.

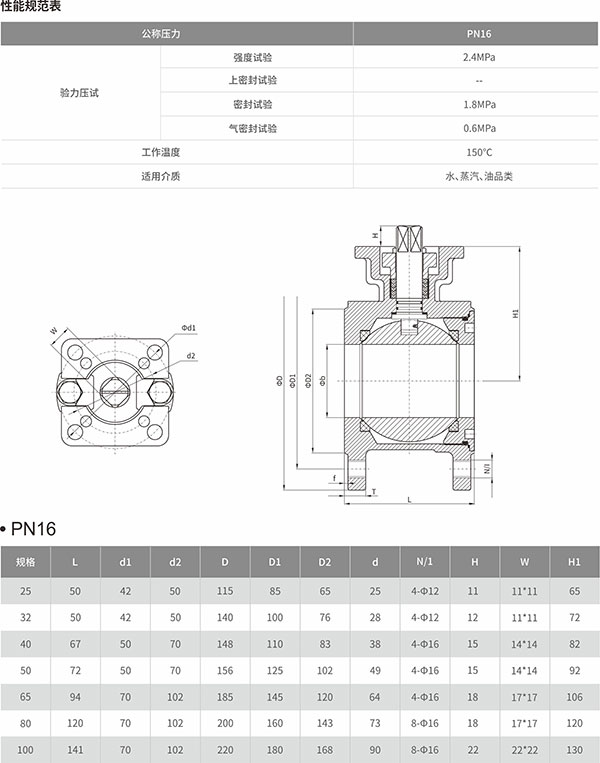

Flange dimensions are specified according to HG/T 20592, HG/T 20615, GB/T 9113, JB/T 79, ASME B16.5, JIS B220, EN1092 and other standards.
The structure length of the valve is in accordance with GB/T12221, EN 558, ASME B16.10, DIN 3202, JIS and other standards.
Valves are inspected and tested in accordance with GB/T 26480, GB/T 1397, API 598, ISO 5208 and other standards.
Valve pressure and temperature ratings in accordance with GB/T12224, ASME B16.34 and other standards.
